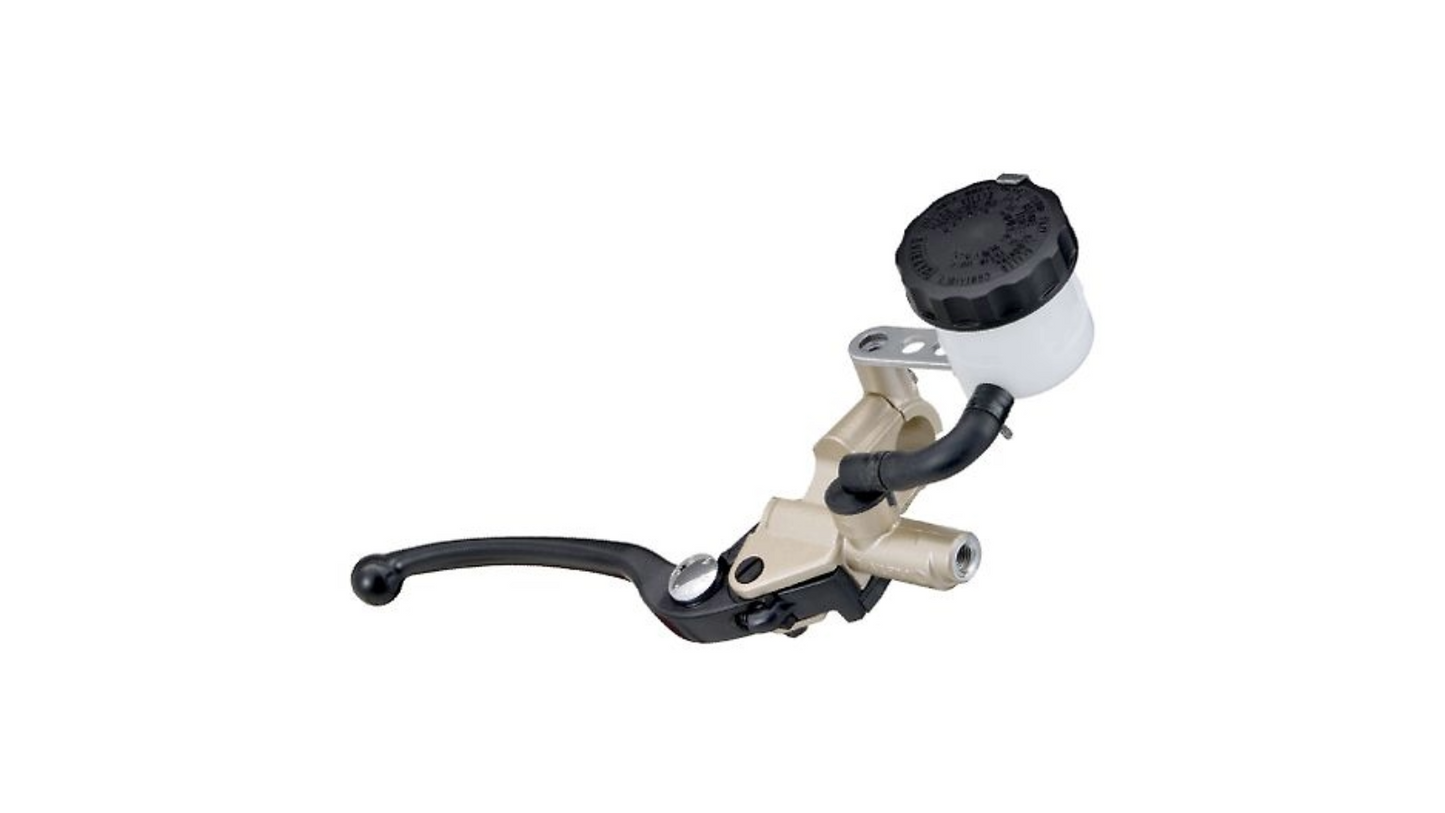

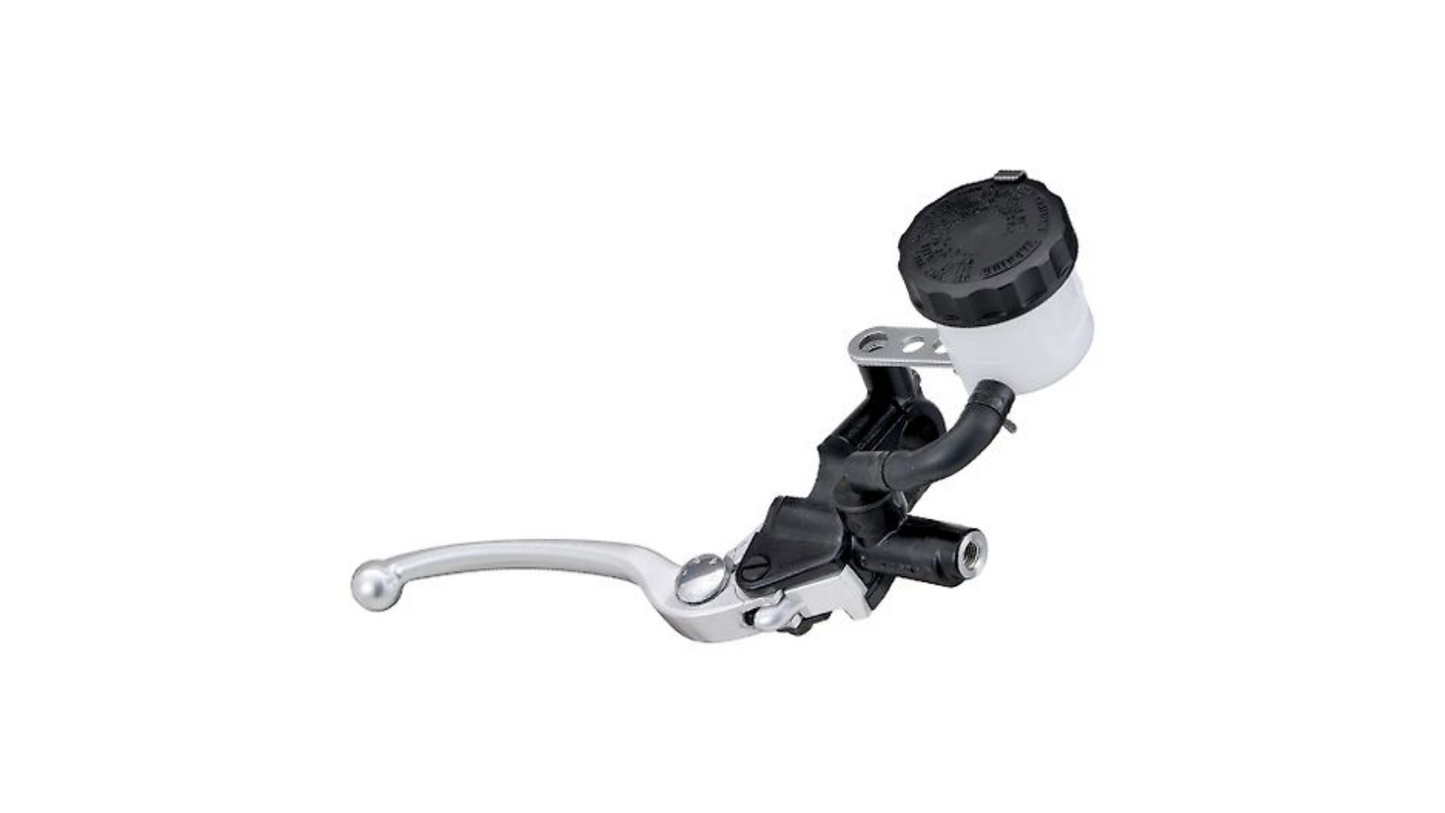

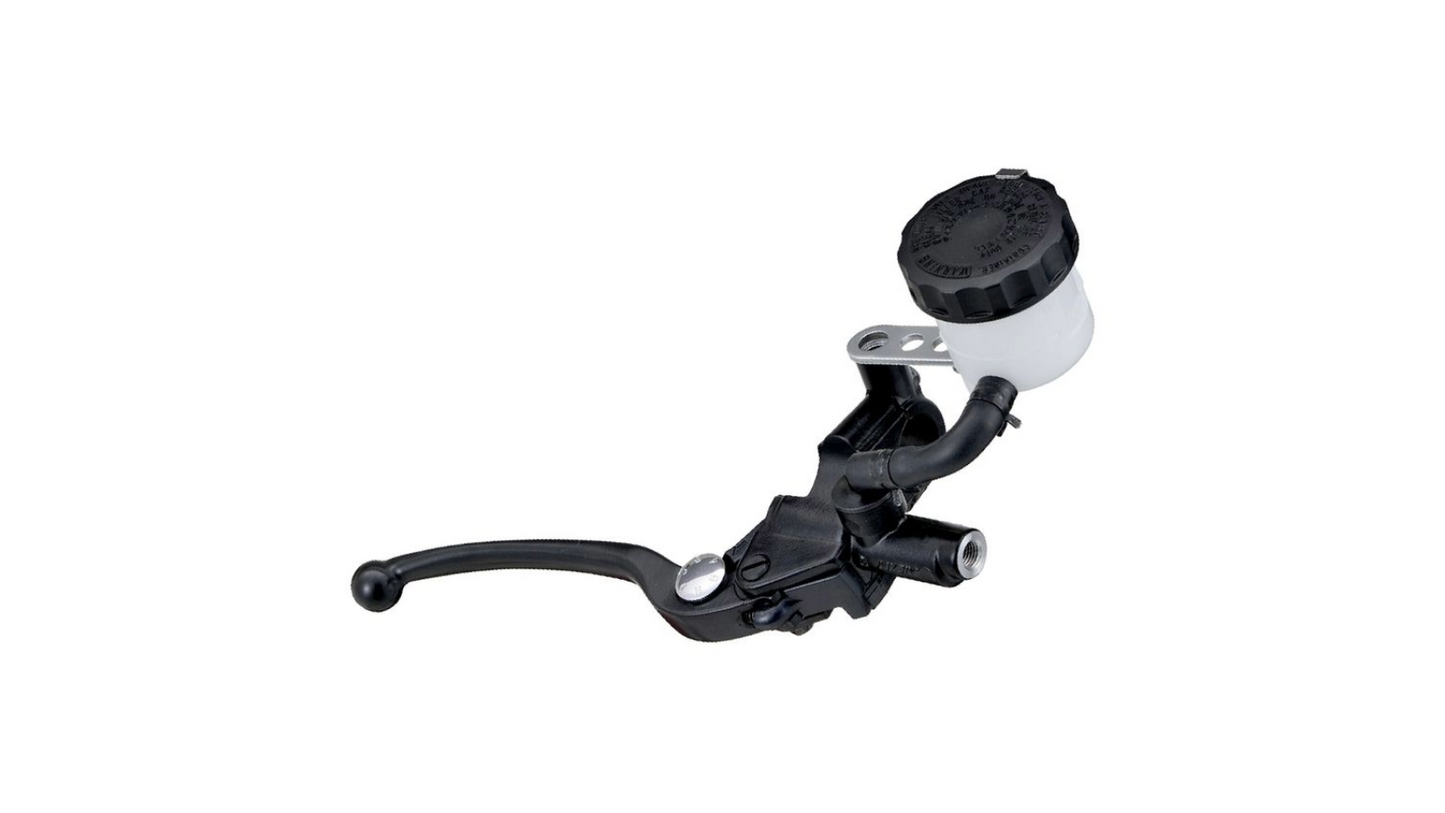

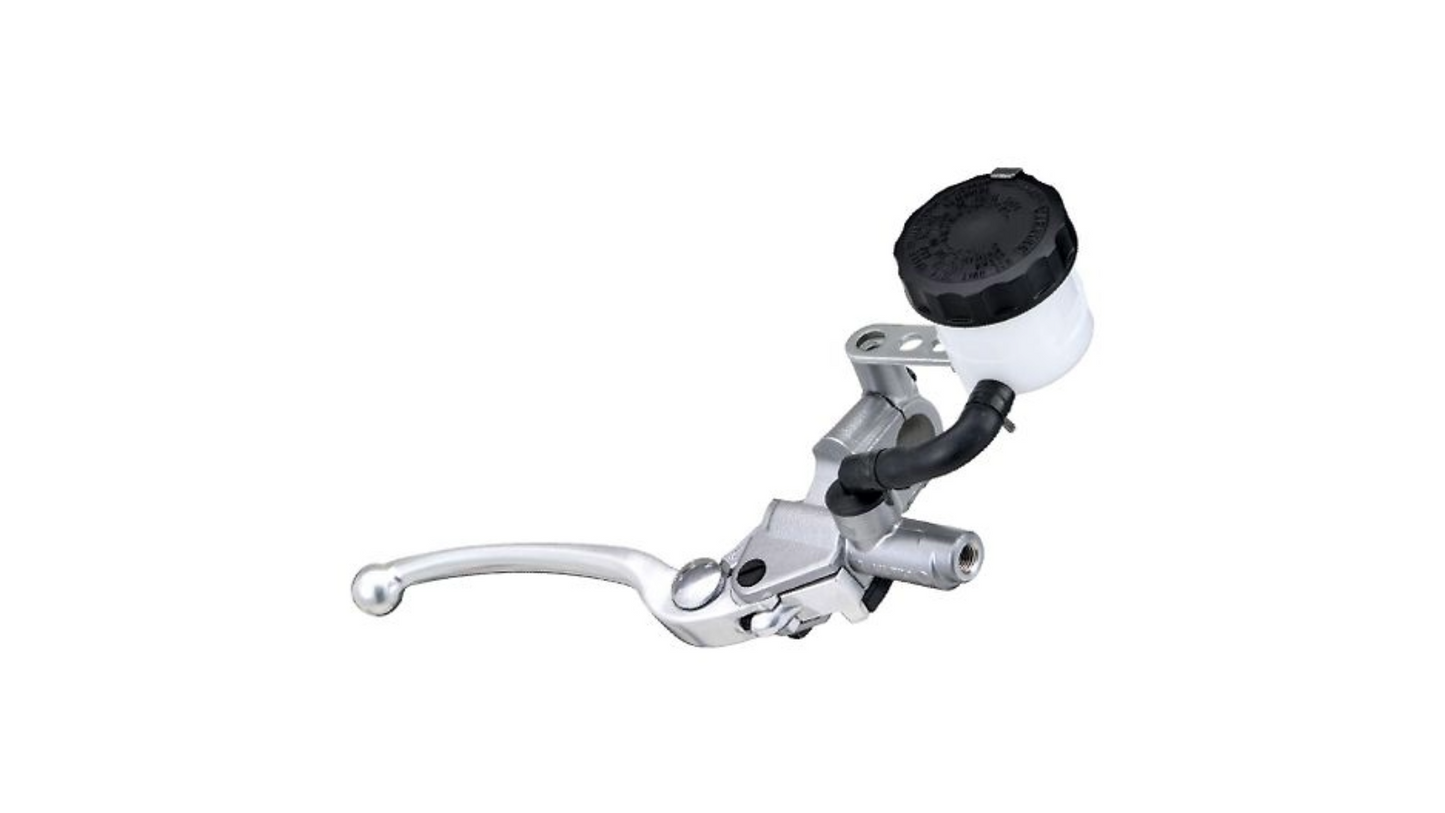

NISSIN Stock Lever Brake Master Cylinder Kit (Horizontal Type 5/8" / Tank Separate Body)

NISSIN Stock Lever Brake Master Cylinder Kit (Horizontal Type 5/8" / Tank Separate Body)

NOTE: Shipping will be calculated after purchase.Alternatively, feel free to email us at brendon@bushidomotorcycles.nz for a shipping quote before placing your order.

⚠️ **Out of Stock – Available for Order (ETA: 2-3 Weeks)** ✉️ *Ships from Japan before being dispatched to you. Contact us to confirm availability.*

$174.00 NZD
$174.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

Upgrade your motorcycle's braking system with the NISSIN Stock Lever Brake Master Cylinder Kit. Precision-engineered with a 5/8" bore size and a separate reservoir tank, this kit is trusted for its durability and performance across a wide range of motorcycles.

✅ Key Features:

  • Piston Diameter: 5/8" (approx. 15.9mm)
  • Compatible Handle Diameter: Φ22.2
  • Lever Adjustment: 6-way adjustable for enhanced control.
  • Reservoir Tank Hose Length: 70mm
  • Includes:
    • Brake switch (2-pole flat terminal type)
    • Aluminum tank bracket x 1
    • Mirror holder (M10 x P1.25 right-handed screw)

✅ Important Notes:

  • Banjo Bolt (M10 x P1.25): Sold separately.
  • Gasket Replacement: Use 2 gaskets for single banjo, 3 for double banjo setups.
  • Hose Compatibility: Hose direction and angle may differ from stock.
  • Lever Adjustment: Ensure the lever does not contact the grip. If adjustment is insufficient, use a 4-way adjustment lever (sold separately).
  • Brake Fluid Compatibility: Do not use silicone-based DOT5 (BF5) brake fluid.
  • Specified Levers Only: Avoid non-recommended levers, which may cause issues like vapor lock.

✅ Full Compatibility List:

HONDA CBR600F 02 4i
HONDA CBR600F 99-
HONDA CBR1000F 87-88
HONDA CB900F 78-82
HONDA CB750 Four(CB750K) 77
HONDA CB400TII CB400T 78-81
HONDA CB400SF 97-98 ver.S
HONDA CB400SF 08-21 Revo
HONDA VF1000 84 R
HONDA VF1000 84-85 F
HONDA RVF750 95-99 RC45
HONDA NS400 84-85 R
HONDA HORNET600 98-00 Domestic
HONDA CBX550 F/INTEGRA 82
HONDA CBX1000
HONDA CBR750 88
HONDA CBR900RRFire blade 92-99 *00 not available (3|4")
HONDA CBR400F 83-85 III
HONDA CBR400F 83-85
HONDA CB750 79-81 FB
HONDA CB750 79-81 FA
HONDA CB750 79-81 FZ
HONDA CB750F 82 Integra
HONDA CB750 82 FC
HONDA CB400T CB250N 80-81
HONDA CB1300 SF 98-02
HONDA CB1100R 81-83
HONDA CB1100F 83
HONDA NS250 84-85 F
HONDA NS250 84-85 R
HONDA CBX750F 83-84 Boldor.
HONDA CBX750F 83-84
HONDA CB400SF 99-07 SPEC-III
HONDA CB400SF 99-07 SPEC-II
HONDA CB400SF 99-07 SPEC-I
HONDA VT250 INTEGRA 82-83
HONDA VT250 INTEGRA 85 F2H
HONDA VFR750R 87 RC30
HONDA VFR750F 86-87 RC24
HONDA VF750F 83
HONDA VF400 84 F-Integra
YAMAHA GRAND MAJESTY400 05-08 5RU [part used] Right side
YAMAHA XJR1300 98-99
YAMAHA V-MAX 1200 90-00
YAMAHA TZR250 89-90
YAMAHA TX650 73 W-Disk
YAMAHA TRX850 95-00
YAMAHA TDM850 92-00
YAMAHA SRX600 86
YAMAHA FZR750 87-88
YAMAHA FZR250R 89-99
YAMAHA FZR1000 87-95
YAMAHA FZ750 85-86
YAMAHA FZ400 97-99
YAMAHA FZ250 FAZER 85-86
YAMAHA FJ1200 88-93 ABS
YAMAHA YZF750SP 93-97
YAMAHA SRX400 86 YSP specification
YAMAHA RZV500R 84-87
YAMAHA RZ350 81-82
YAMAHA RZ250R 88-90
YAMAHA R1-Z 90-99
YAMAHA GTS1000 96-99
YAMAHA FZX750 86-00
YAMAHA FZR750R(OW-01)
YAMAHA XJ400 83 Z
YAMAHA TZR250 91-99 SPR
YAMAHA TZR250 91-99 RS
YAMAHA TZR250R 91-99
YAMAHA RZ350 83-84 RR
YAMAHA RZ350R 83-84
YAMAHA RZ250 83-86 RR
YAMAHA RZ250R 83-86
YAMAHA YZF 750R 93-97
YAMAHA XJR400R 93-00
YAMAHA XJR400 93-00 S
YAMAHA XJR400 93-00
YAMAHA XJR1200R 94-97
YAMAHA XJR1200 94-97
YAMAHA XJ400 83 ZS
YAMAHA XJ400 83 ZE
YAMAHA FZR400R 86-89
YAMAHA FZR400 86-89
YAMAHA FZR400RR SP 90-99
YAMAHA FZR400RR 90-99
YAMAHA FZ400N 84-89
YAMAHA FZ400 84-89
SUZUKI GSX400 99-
SUZUKI INAZUMA400 97-00
SUZUKI GSX750 KATANA 82-85
SUZUKI GSX750F 99-
SUZUKI GSX400S KATANA 92-94
SUZUKI GSX400 82 FS Impulse
SUZUKI GSX400 88-89 FJ
SUZUKI GSX1400 01-08
SUZUKI GSX1100S KATANA (KATANA) 81-99
SUZUKI GSX-R750 94-95 SPR
SUZUKI INAZUMA1200(GSX1200FS) 96-00
SUZUKI TL1000R 98-00
SUZUKI SV400 00-01 S
SUZUKI SV1000 03
SUZUKI RGV250 (Gamma) 88-95
SUZUKI RG250 γ 83-84
SUZUKI RF900 91-00 R
SUZUKI GSX750 KATANA 86-87 III
SUZUKI GSR400 06-07
SUZUKI BANDIT400 89-99 VZ
SUZUKI BANDIT400 89-99 V
SUZUKI BANDIT400 89-99
SUZUKI BANDIT1200 00-06
SUZUKI BANDIT1200 00-06
SUZUKI SV650S 99-
SUZUKI SV650 (1999) 99-
SUZUKI GSX-R750 96-00
SUZUKI GSX-R400 90-99 R
SUZUKI GSX-R400 88-89
SUZUKI GSX-R250/R 89
SUZUKI GSX-R1100 93-99 W
SUZUKI GSX1300R GSX1300R HAYABUSA(GSX1300R HAYABUSA) 99-07
SUZUKI GSX1300R GSX1300R HAYABUSA(GSX1300R HAYABUSA) 08-15
SUZUKI GSX-R1100 86-88
SUZUKI GSX-R750 85-87 R
SUZUKI GSX-R750 85-87
SUZUKI GSF1200S 96-00
SUZUKI GSF1200 95-00
KAWASAKI ZZR400 90-05
KAWASAKI ZZR1100/ZX-11 90-01
KAWASAKI ZXR400 89-90
KAWASAKI ZX-12R 00-02
KAWASAKI ZX-9R 98-00
KAWASAKI ZX-9R 95-97
KAWASAKI ZX-6R 98-00
KAWASAKI ZX-6R 95-97
KAWASAKI ZEPHYRX 97-08
KAWASAKI ZEPHYR400 89-95
KAWASAKI ZZR1200 02-05
KAWASAKI ZZR600 90-00
KAWASAKI Z1000R 82-83
KAWASAKI Z1000J 81-83
KAWASAKI Z1000 (air-cooled) 77-78
KAWASAKI Z1000 MkII 79-80
KAWASAKI Z1-R/Z1-RII 78-79
KAWASAKI Z1300/KZ1300 79-89
KAWASAKI GPZ900R 84-01
KAWASAKI GPZ750R 84-86
KAWASAKI ZX-10 88-90
KAWASAKI ELIMINATOR 1000 86-87 ZL1000
KAWASAKI Z900 (KZ900) 76 W-Disk
KAWASAKI Z750GP 82
KAWASAKI Z750FX 79
KAWASAKI Z2 (750RS/Z750FOUR) 76-77 W-Disk
KAWASAKI Z1100R 84
KAWASAKI Z1100GP 81-82
KAWASAKI W3/650RS 73
KAWASAKI ZEPHYR750 RS 90-06
KAWASAKI ZEPHYR750 90-06
KAWASAKI ZEPHYR1100 RS 92-06
KAWASAKI ZEPHYR1100 92-06
KAWASAKI ZXR750R 89-95
KAWASAKI ZXR750 89-95
KAWASAKI ZX-7RR 96-00
KAWASAKI GPz750/F 83-85
KAWASAKI GPZ600R 85
KAWASAKI GPZ1100 95-00
KAWASAKI GPZ1100 83-84
KAWASAKI GPZ1000RX 86-87
KAWASAKI GPX750R 86
KAWASAKI ELIMINATOR 900 85
KAWASAKI ELIMINATOR 750 85
KAWASAKI Z750FXII/III 80-81
KAWASAKI KR-1/S/R 89-90
KAWASAKI ZX-7R 96-00
KAWASAKI ZRX400II 94-05
KAWASAKI ZRX400 94-05
KAWASAKI ZRX1200S 01-08
KAWASAKI ZRX1200R 01-08
KAWASAKI ZRX1100II 97-00
KAWASAKI ZRX1100 97-00
KAWASAKI ZR-7/S 99-05
TRIUMPH SPRINT ST 99-
TRIUMPH SPEED TRIPLE 99-
TRIUMPH DAYTONA955i 99-
TRIUMPH T595DAYTONA 98-
TRIUMPH SPEED TRIPLE 96
TRIUMPH DAYTONA900 96
TRIUMPH TIGER 08
TRIUMPH SPEED TRIPLE 98 T509
